Case 480F, 480F LL Tractor Loader Backhoe Service Repair Manual Download

We Offers manuals high quality images, diagrams, instructions to help you to operate, maintenance, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This professionally reproduced repair manual is the latest edition and contains the service procedures for the Case 480F, 480F LL Tractor Loader Backhoe. Troubleshooting, removal, disassembly, inspection and installation procedures, and complete specifications and torque references can be found in most sections. View the 480F, 480F LL Tractor Loader Backhoe Repair Manual on your computer or print off detailed service and maintenance, as well as illustrations, as needed.

Topic List in the 480F, 480F LL Tractor Loader Backhoe Repair Manual:

GENERAL INFORMATION
Safety Rules, Service Manual Introduction, and Torque Specifications
Maintenance and Lubrication

ENGINE
Engine Removal and Installation
Radiator Removal and Installation
Engine Accessories
Stall Test
Engine Specifications
Cylinder Head and Valve Train
Cylinder Block
Lubrication System
Cooling System

FUEL SYSTEM
Fuel Filters
Fuel Injection Pump
Fuel Injectors

ELECTRICAL
Removal and Installation of Electrical Components
Electrical System Troubleshooting
Wiring Diagrams/Schematics
Battery
Starter
Alternator
Instrument Cluster and Instrument Panel

STEERING
Steering System Removal and Installation
Steering System Troubleshooting and Pressure Check
Steering Pump
Steering Control Valve
Steering Cylinders
Front Axle

POWER TRAIN
Maintenance and Troubleshooting
Removal and Installation
Power Shuttle
Controls
Transfer Gearbox
Wheels and Tires

BRAKES
Brakes
Differential Brakes

HYDRAULIC SYSTEM
Removal and Installation
Hydraulic System Specifications, Schematics and Troubleshooting
Cleaning the Hydraulic System
Flow Control Valve
Hydraulic Pump
Loader Control Valve
Cylinders
Backhoe Control Valve
Stabilizer Control Valve
Boom Lock System
Three Point Hitch Control Valve
PTO Motor

MOUNTED EQUIPMENT
Loader
Three Point Hitch and PTO
ROPS Cab and Canopy
Operators Seats, Seat Belts
Backhoe

Covers: Case 480F, 480F LL Construction King Tractor Loader Backhoe (COMPLETE)
Pages: 1,140
Format: PDF file (zipped)
Compatibility: Windows/Mac computers
File size: 268mb
Note: Instant digital download only – no printed copy or CD-ROM media.

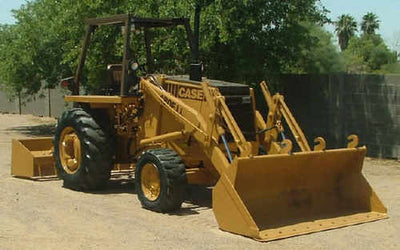

Case 480F 480F LL Tractor Loader Backhoe Service Repair Manual PDF
