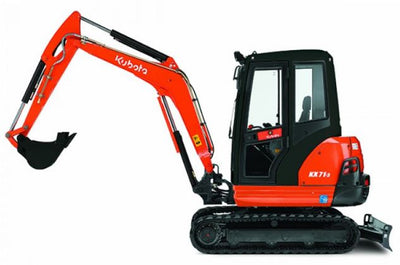

KUBOTA KX71(H)[S.No.;50001 to 55000] EXCAVATOR PARTS MANUAL INSTANT DOWNLOAD

This parts catalog is necessary for determination of original number of the spare part of the producer. Further according to this number it was possible to find, order, buy easily the spare part for your machine. This parts catalog contains parts used for all the machines having machine numbers which match serial numbers of this directory.

Manual Covers:
CRANKCASE
OIL PAN
PISTON CRANKSHAFT
MAIN BEARING CASE
CAMSHAFT
CYLINDER HEAD
VALVE ROCKER ARM
CYLINDER HEAD COVER
GEAR CASE
ENGINE BRACKET
AIR CLEANER INLET MANIFOLD
MUFFLER EXHAUST MANIFOLD
NOZZLE HOLDER GLOW PLUG
NOZZLE HOLDER (COMPONENT PARTS)
SPEED CONTROL PLATE
STOP SOLENOID
GOVERNOR
INJECTION PUMP CAMSHAFT (1)
INJECTION PUMP (COMPONENT PARTS)
INJECTION PUMP CAMSHAFT (2)
ACCEL LEVER
FUEL PIPING
FUEL TANK
WATER FLANGE
WATER PUMP
RADIATOR
WATER PIPE
FLYWHEEL STARTER
STARTER (COMPONENT PARTS)
STARTER (COMPONENT PARTS)
DYNAMO
DYNAMO (COMPONENT PARTS)
BATTERY
REGULATOR HORN
SWITCH METER
ELECTRICAL WIRING
PUMP HOUSING
GEAR PUMP & COMPONENT PARTS
HYDRAULIC PUMP & COMPONENT PARTS
DRIVE MOTOR & COMPONENT PARTS 1
DRIVE MOTOR & COMPONENT PARTS 2
SWIVEL MOTOR & COMPONENT PARTS
ROTARY JOINT
OIL TANK
CONTROL VALVE (1)
CONTROL VALVE (1) (COMPONENT PARTS)
SPOOL SECTION (TRAVEL RH)
SPOOL SECTION (BOOM)
SPOOL SECTION (BUCKET)
SPOOL SECTION
SPOOL SECTION (TRAVEL LH)
SPOOL SECTION (BOOM)
SPOOL SECTION (ARM)
SPOOL SECTION (S/P)
SPOOL SECTION (TRAVEL SPEED 2ND)
SPACER SECTION
CONTROL VALVE (3)
CONTROL VALVE (3) (COMPONENT PARTS)
SPOOL SECTION (SWIVEL)
SPOOL SECTION (SWING)
SPOOL SECTION (BLADE)
CHANGE VALVE
CONTROL LEVER (FRAME)
CONTROL LEVER (BOX LH)
CONTROL LEVER (LEVER LH)
PILOT VALVE (COMPONENT PARTS)
CONTROL LEVER (BOX RH)
CONTROL LEVER (LEVER RH)
CONTROL LEVER (TRAVEL LH)
CONTROL LEVER (TRAVEL RH)
CONTROL TRAVEL PEDAL
CONTROL LEVER (SAFETY LOCK LEVER)
CONTROL PEDAL (SWIVEL/SWING CHANGE)
CONTROL LEVER (BLADE)
CONTROL LEVER (S/P)
OIL PIPING (THIRD LINE)
OIL PIPING (SUCTION)
OIL PIPING (DELIVERY)
OIL PIPING (UNLOAD VALVE) (COMPONENT PARTS)
OIL PIPING (RETURN C/V TANK)
OIL PIPING (OIL COOLER)
OIL PIPING (OIL COOLER)
OIL PIPING (TRAVEL LH)
OIL PIPING (TRAVEL RH)
OIL PIPING (SWIVEL / SWING)
OIL PIPING (SWIVEL)
OIL PIPING (SWING)
OIL PIPING (LOCK)
OIL PIPING (BOOM 1)
OIL PIPING (BOOM 2)
OIL PIPING (ARM 1)
OIL PIPING (ARM 2)
OIL PIPING (BUCKET 1)
OIL PIPING (BUCKET 2)
OIL PIPING (BLADE)
OIL PIPING (CONFLUENCE)
OIL PIPING (CUSHION)
OIL PIPING (S/P)
BOOM CYLINDER & COMPONENT PARTS
ARM CYLINDER & COMPONENT PARTS
BUCKET CYLINDER & COMPONENT PARTS
BLADE CYLINDER & COMPONENT PARTS
SWING CYLINDER & COMPONENT PARTS
SWING BRACKET
BOOM
CYLINDER COVER (BOOM)
ARM
BUCKET LINK
BUCKET
BLADE
TRUCK FRAME
IDLER
TRUCK ROLLER
CRAWLER
SWIVEL FRAME
SWIVEL GEAR CASE
SWIVEL GEAR
SWIVEL BEARING
FLOOR PLATE (1)
FLOOR PLATE (2)
BONNET
SPONGE (1)
SPONGE (2)
SPONGE (3)
WEIGHT
CANOPY
CABIN (BODY)
CABIN (DOOR)
CABIN (FRONT WINDOW)
CABIN (WINDOW)
CABIN (SPONGE)
CABIN (ELECTRICAL)
CABIN (WIPER MOTOR)
CABIN (DEFROSTER)
CABIN (HEATER)
INSTRUMENT PANEL
SEAT
LIGHT
LABEL
ACCESSORIES

LANGUAGE: English
FORMAT: PDF
COMPATIBLE: All Versions of Windows, Mac, iOS, BB, Android, etc.
* SEARCHABLE – BOOKMARKED

This catalog is divided into main sections corresponding to specific areas of the product. Each section is represented by detailed figures (illustrations), diagrams, part numbers to assist in locating and identifying parts.

Keep in mind that this is NOT a service/repair manual, only a parts catalog!

And the ability to search makes finding what you need as easy as typing a word.

The Manual can be viewed on any computer, as well as zoomed and printed.
