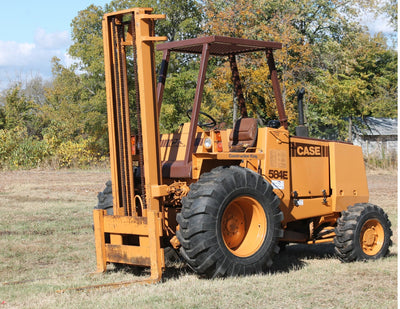

Download Case 584E 585E 586E Forklift Workshop Service Repair Manual

It is Original Workshop Service Repair manual contains information to carry out service and repair on Case 584E 585E 586E Forklift. This professional quality repair manual (also known as a
service manual or shop manual) contains detailed step-by-step instructions, specifications and accurate illustrations for the Case 584E 585E 586E Forklift. View the manual on your computer
or print off pages as needed. Download this manual and get started on your project within minutes.

Manual Covers:

GENERAL INFORMATION

Loctite Product Chart
Safety, Service Manual Introduction and Torque Specifications
Fluids and Lubricant Chart, Systemgard Testing
Schedule and Maintenance Chart
General Engine Specifications

ENGINES

Engine and Radiator Removal and Installation
Air Cleaner, Ether Injection
Stall Tests
Specification Detail
Cylinder Head, Valve Train
Cylinder Block, Sleeves, Pistons, and Rods
Crankshaft, Main Bearings, Flywheel, and Oil Seals
Cooling System
Engine Lubrication

FUEL SYSTEM

Fuel Filters
Fuel Injection Pump and Drive Gear
Fuel Injectors
Fuel Lines, Fuel Tank, Engine Controls

ELECTRICAL

Wiring Diagram
Removal and Installation of Electrical Components
Specifications and Troubleshooting
Batteries
Starter and Starter Solenoid
Alternator
Instrument Cluster

STEERING

Steering System Troubleshooting and Pressure Check
Steering Control Valve
Steering Cylinders
Rear Axle – Two-Wheel Drive Machines
Rear Axle – Four-Wheel Drive Machines

POWER TRAIN

Maintenance and Troubleshooting
Removal and Installation
Power Shuttle
Power Shuttle Controls
Transaxle and Differential Lock
Transfer Gear Box
Wheels and Tires

BRAKES

Brake Pedals
Differential Brakes

HYDRAULICS

Removal and Installation of Pump Flow
Control Valve and Cylinder
Maintenance
Hydraulic System Specifications, Diagrams, Troubleshooting, and Pressure Checks
Cleaning the Hydraulic System
Hydraulic Pump
Flow Control Valve
Control Valve and Control Levers
Cylinders

MOUNTED EQUIPMENT

Masts With Single Lift Cylinder
Free Lift Mast
Masts With Two Lift Cylinders
Canopy
Operators Seats, Seat Belts

Language: English
P/N 8-44811
Pages: 1181
File Size: 432MB
Format: PDF
Features: Bookmarked, searchable, printable
Compatibility: Windows/Mac/Tablet/Mobile
