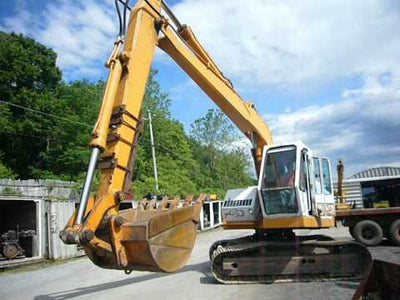

Drott 35 Series D Excavator Service Repair Manual Download

We Offers manuals high quality images, diagrams, instructions to help you to operate, maintenance, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This professionally reproduced factory service manual contains the service procedures for the Drott 35 Series D crawler excavators. View the service manual on your computer or print off pages as needed.

Topic List:

GENERAL
Index
Safety Precautions
Introduction
Nomenclature, Description and Specifications

SECTION 1 SCHEDULED PREVENTIVE MAINTENANCE
Introduction
Hydraulic System Pressures
Component Capacities, Lubricants, and Fluids
Maintenance Chart
Illustrated Listing of Grease Fittings
Itemized Maintenance Instructions

SECTION 2 MECHANICAL SYSTEM
Undercarriage Components
Engine and Related Parts
Turntable Swing
Boom and Attachments
Control Linkages

SECTION 3 ELECTRICAL SYSTEM
Introduction
12/24 Volt System (Machines through PIN 6266300)
24 Volt System {Machines with PIN 6266301 and After)

SECTION 4 HYDRAULIC SYSTEM
Introduction
System Maintenance
Main Hydraulic System
Track Drive Circuit
Swing Circuit
Hoist Cylinder Circuit
Crowd Cylinder Circuit
Tool Cylinder Circuit
Leveler Cylinders Circuit

SECTION 5 TROUBLESHOOTING
Introduction
Mechanical Components
12/24 Volt Electrical System
24 Volt Electrical System
Hydraulic System and Components

SECTION 6 DISASSEMBLY AND REPAIR
General Cleaning Instructions
Mechanical Components
Electrical Components
Hydraulic Components

TORQUE CHARTS AND SCHEMATICS
Torque Charts
Electrical Schematics
Hydraulic Schematic

Covers: Drott 35 Crawler Excavators (Series D, all serial numbers)
Pages: 232
Format: PDF
Compatibility: Windows/Mac/Tablet
Note: Instant digital download only – no printed copy or CD-ROM media.

Drott 35 Series D Excavator Service Repair Manual PDF
