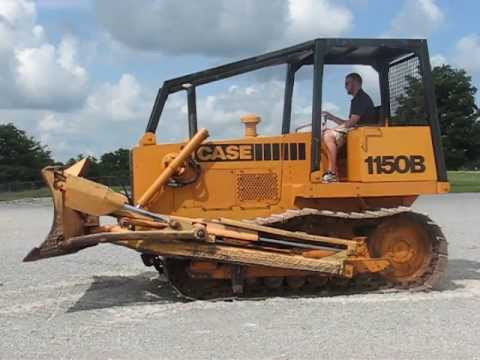

Case 1150B Crawler Dozer Service Manual Download

Regular price
$69.90 USD
Sale price
$69.90 USD
Regular price
$79.90 USD
Covers Case 1150B Crawler Dozer (all years) P/N 9-72547 866 pages Downloadable PDF format Bookmarked sections, printable 120mb Works with Windows and Mac computers The Case 1150B Crawler Dozer Service Manual includes specifications,...
Case 1150B Crawler Dozer Service Manual Download
  • Covers Case 1150B Crawler Dozer (all years)
  • P/N 9-72547
  • 866 pages
  • Downloadable PDF format
  • Bookmarked sections, printable
  • 120mb
  • Works with Windows and Mac computers

The Case 1150B Crawler Dozer Service Manual includes specifications, step-by-step instructions and accurate illustrations to aid mechanics with any mechanical, electrical or hydraulic repairs. The complete service manual was carefully reproduced from the original dealer manual and is a must for mechanics repairing or rebuilding their 1150B Crawler Dozer to the manufacturer’s standards. This service manual is also referred to as the shop manual or repair manual. View the Case 1150B Crawler Dozer Service Manual on your computer or print off pages as needed.

Topics in the Case 1150B Crawler Dozer Service Manual:

GENERAL INFORMATION
General Engine Specifications
Detailed Engine Specifications
Detaiied Fuel Specifications
Maintenance and Lubrication
Torque Chart

ENGINE
Engine Diagnosis
Engine Tune-Up
Cylinder Head, Valve Train and Camshaft
Cylinder Block, Sleeves, Pistons and Rods
Crankshaft, Main Bearing, Flywheel and Oil Seal Replacement
Lubrication System
Stall Checks, Engine Removal and Installation
Air Cleaner
Ether Injector Starting Aid
Cooling System

FUEL SYSTEM
Fuel System and Filter
Fuel Injection Pumps
Fuel Injectors
Fuel Tank, Lines and Throttle Adjustment

HYDRAULICS
Diagrams, Troubleshooting, Maintenance, Adjustments
Flowmeter Tests
Exploded Views of Hydraulic System
Diversion Valve R24819
Equipment Pump R25852
Equipment Control Valves
Loader, Ripper and Dozer Cylinders

TRACK AND SUSPENSION
Track System
Track System – Idlers (Without Lubricant Fill Plug in Hub)
Track System – Track Frame Removal and Installation
Suspension System
Guide Levers
Intertrac Rollers

POWER TRAIN
Transmission Oil Flow – Diagrams and Operations
Troubleshooting – Transmission/Torque Converter and Hydraulic System
Diagram, Service, Transmission Removal, Controls
Transmission Control Valve
Torque Converter
Charging Pump R25586
Drive Shafts
Crawler Transmission
Transmission, Final Drives
Transmission Brakes

BRAKES
Brakes
Brake Pedals and Linkage, Parking Brake

ELECTRICAL
Wiring Diagram
Troubleshooting
Battery
Starter and Starter Solenoid
Alternator

MOUNTED EQUIPMENT
Loader
Power Tilt Dozer, Power Angle-Tilt-Pitch (ATP) Dozer
Field Removal/Installation of ATP Dozer Blade for Transport
W5A Hyster Winch
Ripper
ROPS
