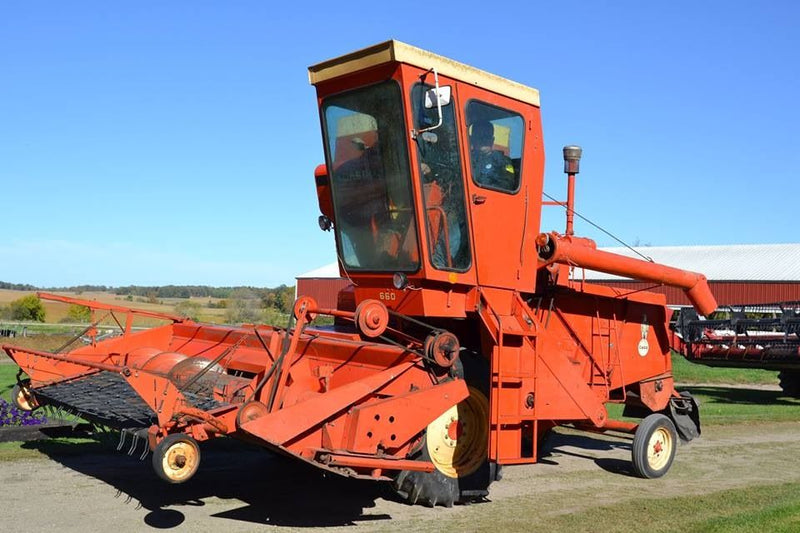

Case 600, 660 Combine Service Manual Download

• Covers Case 600, 660 Combine (Gas and Diesel models)
• P/N 9-63801
• 692 pages
• Downloadable PDF format
• Searchable, printable
• 113mb
• Works with Windows and Mac computers

The Case 600, 660 Combine Service Manual includes specifications, step-by-step instructions and accurate illustrations to aid mechanics with any mechanical, electrical or hydraulic repairs. The complete service manual was carefully reproduced from the original dealer manual and is a must for mechanics repairing or rebuilding their 600, 660 Combine to the manufacturer’s standards. This service manual is also referred to as the shop manual or repair manual. View the Case 600, 660 Combine Service Manual on your computer or print off pages as needed.

Topics in the Case 600, 660 Combine Service Manual:

SPECIFICATIONS

ENGINES
Specifications for 188 Dynaclonic Diesel and 201 Supr-Torq Gasoline Engines
General Torque Specification Table
Servicing the Fuel Injectors and Fuel Injection Pump on the CASE Dynaclonic Diesel Engine
Servicing the Roosa Master Fuel Injectors (Pencil Type) on the CASE Dynaclonic Diesel Engines
Servicing the Cylinder Head Valve Systems and Rocker Arms on CASE Dynaclonic Diesel Engines
Servicing the Cylinder Head Valve Systems and Rocker Arms on Supr-Torq Gasoline Engines
Servicing the Assemblies in the Engine Block
Servicing the Timing Gear Cover and Fuel Injection Pump Drive (Dynaclonic Diesel Engine)
Servicing the Timing Gear Cover and Governor
Servicing the 267 Series Gasoline Carburetor on CASE Spark Ignition Engines
Servicing the Pierce Belt Driven Governor

LUBRICATION

HEADER
Removing and Installing the Header
Sickle, Swaybar and Sickle Drive Crankshaft
Header Auger and Feeder Rake
Reels and Reel Drives

THRESHING UNIT

SEPARATION UNIT
Beater Assemblies
Strawrack and Grain Pans – Rocker Drives

CLEANING UNIT

AUGERS AND ELEVATORS
Location and Drives
Grain Distribution
Discharge Augers
Tailings Distribution

MANUAL STEERING AND REAR AXLE
Manual Steering Units
Rear Axle Assemblies

POWER STEERING
Details of Components
System Operation
Adjustments and Trouble Analysis

HYDROSTATIC STEERING
Details of Components
System Operation
Adjustments and Trouble Analysis

HYDRAULIC SYSTEM
Introduction to Hydraulic System
Servicing the Hydraulic System
Hydraulic System Operation
Trouble Analysis of Basic Hydraulic System
Hydraulic Pumps
Main Control Valve
Header Lift Cylinder
Variable Speed Control Cylinder
Tubing, Piping and Fittings
Hydraulic Reel Life

DRIVES AND TRANSMISSION
Primary Traction Drive
Variable Speed Drive
Clutch Assembly
Transmission
Parking Brake and Turning Brakes
Drop Boxes and Final Drive
Trouble Analysis of Drives and Transmission

BELT FACTS
Belt Facts – Right Side and Left Side

SERVICE BULLETINS
