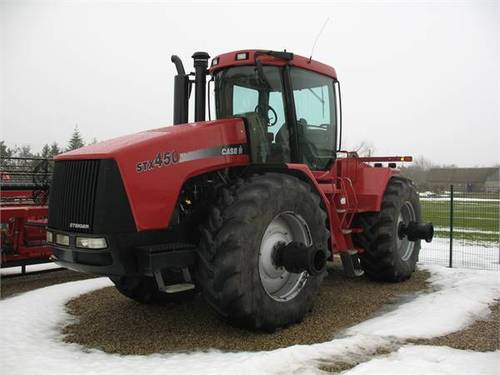

Case IH STX275 thru STX450 Tractor Service Repair Manual PIN JEE0102000 & Below

We Offers manuals high quality images, diagrams, instructions to help you to operate, maintenance, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This professional Service Manual contains service procedures, specifications and illustrations for Case IH STX275, STX325, STX375, STX425, STX440 STX450 Steiger Tractors (PIN JEE0102000 & Below), including Quadtrac models. Troubleshooting, removal, disassembly, inspection and installation procedures, and complete specifications and torque references can be found in most sections. Includes large foldout diagrams and schematics. View the Case IH STX275, STX325, STX375, STX425, STX440 STX450 Tractor service manual on your computer or print off detailed service and maintenance as needed. The service manual is also referred to as the workshop manual or repair manual.

Topics in the Case IH STX275 thru STX450 Tractor Service Manual (PIN JEE0102000 & Below):

GENERAL INFORMATION
Loctite Product Chart
Standard Torque Specifications
Safety

ENGINES (ENGINE/FUEL REPAIR MANUAL SOLD SEPARATELY)
Engine Removal and Installation
Engine Air Induction System
Viscous Fan Drive Test & Hydraulic Fan Drive Test

ELECTRICAL SYSTEM
Electrical System How it Works and Troubleshooting
Starter Motor
Battery Service and Testing
Alternator Testing and Repair (Bosch)
Electrical Schematic Posters

STEERING
Steering Control Valve Removal/Installation (Standard)
Center Console, Steering Column, Pedals and Switches
Steering Column Repair
Steering Cylinders
Accusteer – Steering Control Unit Removal/Installation
Accusteer – How It Works, Calibration and Troubleshooting

POWER TRAIN
PS-3 Powershift Transmission Removal and Installation
Engine Transmission Drive Coupler Removal and Installation
16-Speed Powershift Transmission Disassembly/Assembly
Powershift Transmission System – How It Works
PTO Clutch Removal and Installation
PTO Drive Unit (Clutch) Repair
PTO Drive Unit Control System – How it Works
PTO Transfer Case Removal and Installation
PTO Dropbox Repair
Rear Drive Line and Carrier Bearing
PTO Drive Line Hanger Bearing
Charge Pump Repair (Transmission)
Front Axle Removal and Installation
Rear Axle Removal and Installation
Front and Rear Axle Repair
Tracks Removal and Installation
Undercarriage Removal and Installation
Undercarriage Repair
Range Selector and Pressure Regulator Valve Repair (Transmission)
PS-3 Powershift Transmission – Pressure Testing and Troubleshooting
24 Speed Transmission – How it Works, Pressure Testing and Repair
24 Speed Transmission Removal and Installation

BRAKES
Brake System – How It Works
Service Brake Valve Removal and Repair

HYDRAULICS
How To Read Symbols In A Hydraulic Schematic
Hydraulic Systems How it Works with Troubleshooting
Steering Priority Valve
Hydraulic Gear Pump & PFC Piston Pump Removal and Installation STX275 – STX325 (Accusteer)
Hydraulic Gear Pump & PFC Piston Pump Removal and Installation (Standard)
PFC Pump Removal and Installation
Hydraulic Gear Pump Removal and Installation
Hitch System – How It Works and Troubleshooting
Hitch Valve
Remote Hydraulic System (Manual/Electronic) How it Works and Troubleshooting
Remote Valve and Coupler Removal, Installation and Repair
Axle Cooling/Lube System – How It Works and Troubleshooting
Hydraulic Filters
Charge Pump Repair
Hydraulic Fan and Motor Removal and Repair
Hydraulic Schematic Posters

CHASSIS
A/C System Troubleshooting
A/C Component Service
A/C Temperature Poster
Cab Removal and Installation
Hood Removal and Installation
Radiator, Coolers and Condenser Removal and Installation
Hitch Cylinder Removal and Repair
Center Hinge Bearings and Connecting Link
Deluxe Air Seat
Drawbar Removal and Replacement
Front Frame Hinge and Bearing
Cab Top Removal

CONTROLLER SYSTEMS
Standard Instrumentation Programming and Fault Codes
Hitch Controller Calibration and Fault Codes
Transmission Controller Calibration and Fault Codes
Armrest Controller Calibration and Fault Codes
Remote Hydraulics Controller Fault Codes (Electronic)
Steering Controller and Fault Codes (Accusteer)
Performance Monitor Controller Calibration Fault Codes
Electronic Service Tool Users Manual
AUX67 Controller Fault Codes

Covers: Case IH STX275, STX325, STX375, STX425, STX440, STX450 Tractor (PIN JEE0102000 and Below)
Pages: 3,578
Format: PDF files (zipped)
Compatibility: Windows/Mac computers
Features: Bookmarked, searchable, printable
File size: 529mb – high speed internet required
Note: Instant digital download only – no printed copy or CD-ROM media.
