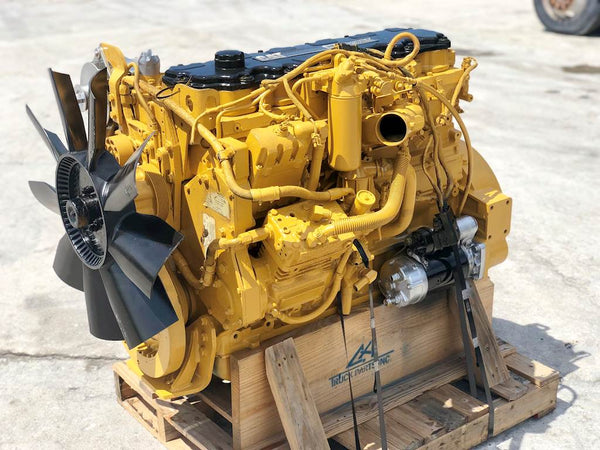

Caterpillar C7 SAP Diesel Engine Complete Full Complete Service Manual

Regular price
$31.92 USD
Sale price
$31.92 USD
Regular price
$127.93 USD
Download Caterpillar C7 SAP Diesel Engine Complete Service Manual Download Caterpillar C7 SAP Diesel Engine Complete Service ManualIt is Original 10-volume service manual set contains complete specifications, systems operation information,...
Caterpillar C7 SAP Diesel Engine Complete Service Manual

Download Caterpillar C7 SAP Diesel Engine Complete Service Manual

Download Caterpillar C7 SAP Diesel Engine Complete Service Manual

It is Original 10-volume service manual set contains complete specifications, systems operation information, disassembly and assembly procedures, testing and adjusting instructions and troubleshooting steps for the Caterpillar C7 SAP diesel engine. Additionally, the Cat C7 SAP engine wiring diagrams are included in high resolution PDF format. This is a complete OEM reference for professional mechanics to service and repair the engine. View the manuals on your computer or print off pages as needed.
Please contact us with your engine serial number if you have compatibility questions.

Sample topics in the Caterpillar C7 SAP Diesel Engine Complete Service Manual:

Engine Specifications
Sensor Specifications
Intake/Exhaust Specifications
Starter Specifications
Engine Mechanical Operation
Electronic Control System Operation
HEUI Fuel System Operation
Air Inlet and Exhaust System Operation
Lubrication System Operation
Cooling System Operation
Electrical System Operation
Fuel System Test
Air in Fuel Test
Engine Speed Check
Electronic Unit Injector Test
Finding Top Center Position
Fuel System Test/Prime
Gear Group (Front) Time
Air Inlet and Exhaust System Testing
Turbocharger Inspection
Inlet Manifold Pressure Test
Exhaust Temperature Test
Aftercooler Test
Engine Crankcase Pressure (Blowby) Test
Engine Valve Lash Inspect/Adjust
Engine Oil Pressure Test
Excessive Bearing Wear Inspect
Excessive Engine Oil Consumption Inspect
Increased Engine Oil Temperature Inspect
Cooling System Check Overheating
Water Temperature Regulator Test
Piston Ring Groove Inspect
Main Bearings Inspect
Cylinder Block Inspect
Flywheel Inspect
Vibration Damper Check
Alternator Test
Battery Test
Charging System Test
Electric Starting System Test
Engine Oil Pressure Sensor Test
Pinion Clearance Adjust
Using Electronic Service Tool
ECM Troubleshooting
Programming Parameters
Troubleshooting without a Diagnostic Code
Troubleshooting with a Diagnostic Code
Calibration Procedures
Complete Engine Disassembly/Assembly Procedures (With Illustrations)
Fuel System Disassembly/Assembly Procedures (With Illustrations)
Lubrication System Disassembly/Assembly Procedures (With Illustrations)
Cooling System Disassembly/Assembly Procedures (With Illustrations)
Torque Specifications
BA-921 Service Manual
Electronic PTO Service Manual
C7 SAP Electrical Schematic (SAP 1-3955)
C7 SAP Electrical Schematic (SAP 3956-Up)
And much more…

Covers: Caterpillar C7 Diesel Truck Engine (SAP serial number prefix)
Pages: 1,659
Format: PDF files (zipped)
Compatibility: Windows/Mac computers
Notes: 10 manuals in the set. Instant download only.
