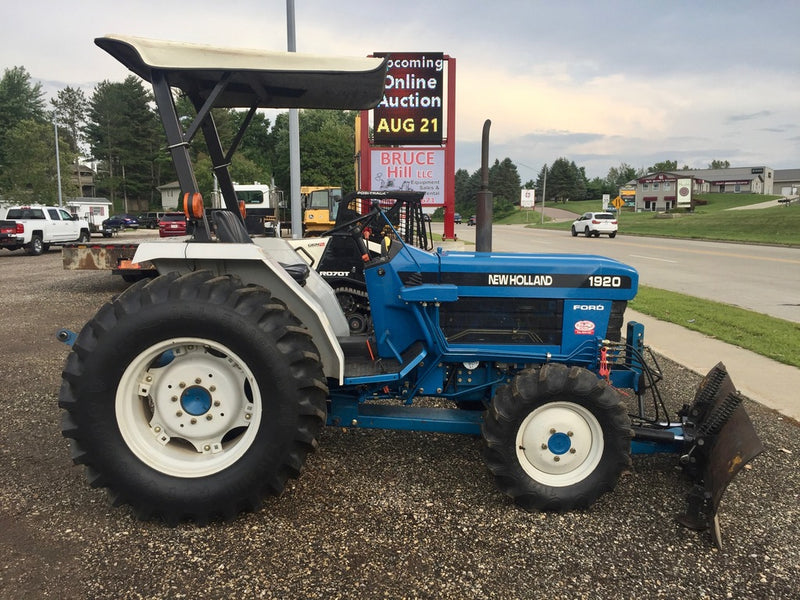

Ford New Holland 1920, 2120 Tractor Service Repair Manual Download

We Offers manuals high quality images, diagrams, instructions to help you to operate, maintenance, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This professional service manual is the latest edition available and contains service and repair procedures for the Ford 1920, 2120 tractors. In this service manual you will find detailed step-by-step instructions, illustrations, specifications and diagrams. View the service manual on your computer or print off detailed information to correctly service or repair your tractor to the manufacturer’s standards. The service manual is also referred to as the repair manual or shop manual.

Topics in the Ford 1920, 2120 Tractor Service Manual:

Engine Systems

Chapter 1
Engine and Lubrication System
Description and Operation
Overhaul
Compression Test

Chapter 2
Cooling System
Description and Operation
Overhaul

Chapter 3
Engine Troubleshooting, Specifications and Special Tools

Fuel System

Chapter 1
Diesel Fuel System Injection Pump
Description and Operation
Removal and Installation
Timing and Governor Adjustments

Chapter 2
Injectors
Description and Operation
Removal and Installation
Overhaul

Chapter 3
Fuel System Troubleshooting and Specifications
Fuel Injection Pump Specifications

Electrical System

Chapter 1
Wiring, Switches, Glow Plugs and Instrumentation
Description and Operation
Overhaul

Chapter 2
Battery
Description and Operation
Maintenance and Tests

Chapter 3
Starting System Description and Operation
Starting Motor – Overhaul
Neutral Start Switch – Description and Operation
Neutral Start Switch – Overhaul
Key Start Switch – Description and Operation
Key Start Switch – Overhaul

Chapter 4
Charging System
Description and Operation
Preliminary Checks and Electrical Tests
Overhaul

Chapter 5
Engine Stop Solenoid
Description and Operation
Overhaul

Chapter 6
Electrical Troubleshooting and Specifications

Clutches

Chapter 1
12 X 12 Hydraulic Shuttle Shift Transmission – Model 2120
Description and Operation
Adjustment
Overhaul

Chapter 2
Double Clutch 12×4 Non-Syncromesh Transmission – Model 1920
12×12 Shuttle Syncromesh Transmission – Model 1920
12×4 Non-Syncromesh Transmission – Model 2120
Description and Operation
Adjustment
Overhaul

Chapter 3
Servicing Clutch Related Components
Clutch Pilot Bearing – Description and Overhaul
Clutch Release Bearing – Description and Overhaul
Clutch Linkage Components – Overhaul

Chapter 4
Clutch Troubleshooting, Specifications and Special Tools

Transmissions

Chapter 1
Non-Syncromesh 12 x 4 Gear Transmission – Model 1920
Description and Operation
Overhaul
Shift Levers and Top Cover
Troubleshooting and Specifications

Chapter 2
Non-Syncromesh 12 x 4 Gear Transmission – Model 2120
Description and Operation
Overhaul
Shift Levers and Top Cover
Troubleshooting and Specifications

Chapter 3
Syncromesh 12 x 12 Shuttle Transmission – Model 1920
Description and Operation
Overhaul
Shift Linkage
Troubleshooting and Specifications

Chapter 4
Syncromesh 12 x 12 Hydraulic Shuttle Shift (HSS) Gear Transmission – Model 2120
Description and Operation
Overhaul
Pressure Testing
Shift Linkage and Top Cover – Overhaul
Troubleshooting and Specifications

Chapter 5
Creeper Gear Option Model 1920
Description and Operation
Overhaul

Chapter 6
Creeper Gear Option Model 2120
Description and Operation
Overhaul

Supplement Electronic Hydraulic Shuttle Shift (EHSS) / Mode Command

Power Take-Off (PTO)

Chapter 1
Power Take-Off Systems Model 1920
Description and Operation
Overhaul

Chapter 2
Power Take-Off System Model 2120
Description and Operation
Overhaul
Specifications

Differential, Rear Axle and Brakes

Chapter 1
Model 1920
Description and Operation
Overhaul

Chapter 2
Model 2120
Description and Operation
Overhaul

Chapter 3
Differential, Rear Axle and Brakes Specifications

Hydraulic System

Chapter 1
Hydraulic System Circuits
Description and Operation
Overhaul
Adjustments

Chapter 2
Hydraulic Pump and Filter
Description and Operation
Overhaul

Chapter 3
Remote Valve
Description and Operation
Overhaul

Chapter 4
Hydraulics Troubleshooting, Pressure Testing, Specifications and Special Tools

Steering System

Chapter 1
Power Steering System
Description and Operation
Overhaul
Pressure Testing

Chapter 2
Steering Troubleshooting, Specifications and Special Tools

Front Axle and Related Parts

Chapter 1
Two-Wheel Drive
Description and Operation
Overhaul

Chapter 2
Four-Wheel Drive
Description and Operation
Overhaul
Front Axle Drive Components

Chapter 3
Front Axle Troubleshooting and Specifications

Wheels and Tires

Chapter 1
Wheels and Tires
Tread Setting
Weight Limitations
Lug Bolt Torque

Separating the Tractor

Chapter 1
Separating the Tractor
Front Axle Removal
Separating the Tractor between the Front End and the Engine
Separating the Tractor between the Engine and Transmission Clutch Housing
Transmission Removal and Installation
Rear Axle and Center Housing Removal and Installation
Rear Axle Housing Removal and Installation

Covers: Ford 1920, 2120 Tractor
Pages: 685
Format: PDF file
File size: 97mb
Compatibility: Windows/Mac/Tablet
Notes: Instant digital download only – no printed copy or CD-ROM media.
